HIGH-PRECISION THREE-AXIS STABILISER INTEGRATING ALL PSDK 2.0 FEATURES

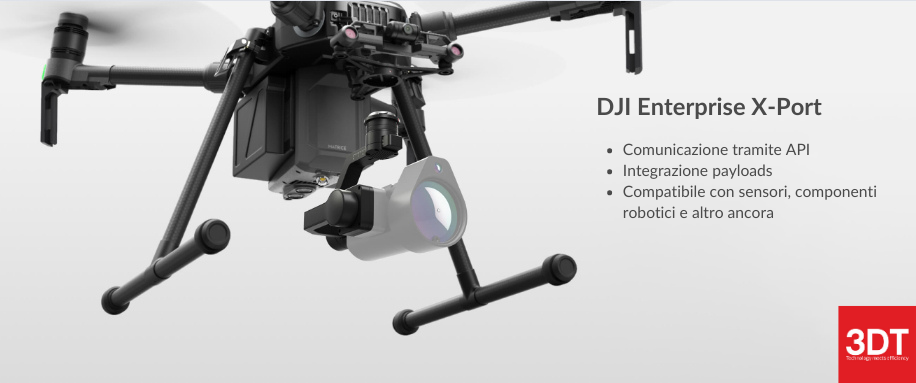

DJI X-Port is a standard gimbal that allows drone hardware developers to quickly integrate their own custom sensors on the DJI M300 or M200 V2. DJI X-Port includes an integrated communication API, DJI SkyPort V2 integration and a gimbal debug interface. Working with Payload SDK Development Kit 2.0, X-Port is estimated to reduce development time from start to finish for new payloads by up to 40%.

Through DJI X-Port, developers can directly integrate independently developed special loads (such as multispectral cameras, LiDAR sensors) into DJI drones, expand drone functions and easily realise integrated control of software and hardware.

Developers can not only use interfaces such as power supply, communication link, status information, attitude information, time and date, but also use them with software such as Onborad SDK, Mobile SDK, DJI Pilot and DJI Assistant.

Main features

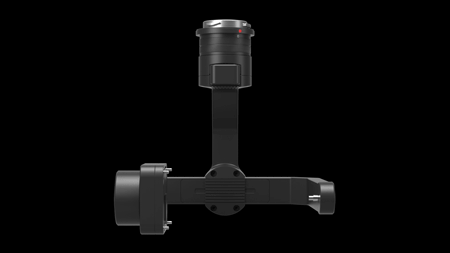

• High-precision three-axis stabiliser
• Integrates all PSDK 2.0 features
• Customisable stabilisation parameters
• Supports installation on top stabilisation connector
• Customisable channels for radio control buttons
• Controllable directly from DJI Pilot, MSDK and OSDK apps

Use MSDK and OSDK

• MSDK: the mobile app developed on the basis of MSDK could control X-Port and customised sensors based on X-Port.


• OSDK: The application developed on the basis of OSDK could control Dorne, X-Port and customised sensors based on X-Port.

PAYLOAD SELECTION GUIDELINES

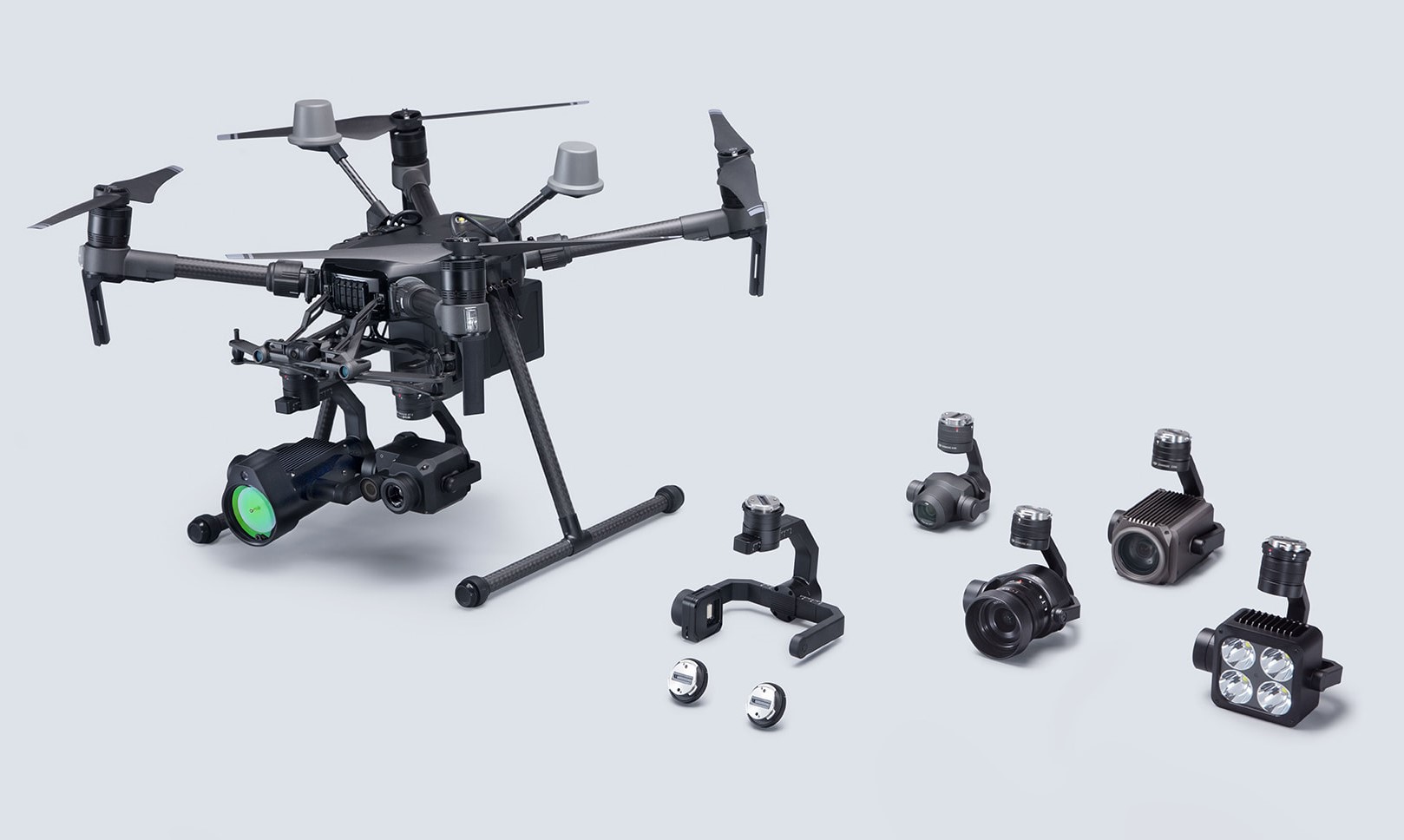

• M200 and M200 V2 Series
  The weight of the single payload in 600~1200g, to avoid damaging the shock-absorbing ball, use the double gimbal to carry the payload. Make sure the centre of gravity of the payload is on the vertical line of the connection centre of the double gimbal.
• M300 RTK
  The total payload weight on the M300 RTK may not exceed the maximum payload of 2.7kg; when using the gimbal adapter board, the payload weight must be less than 850g, more information on hardware and software integration in the user manual.
