OUSTER OS0

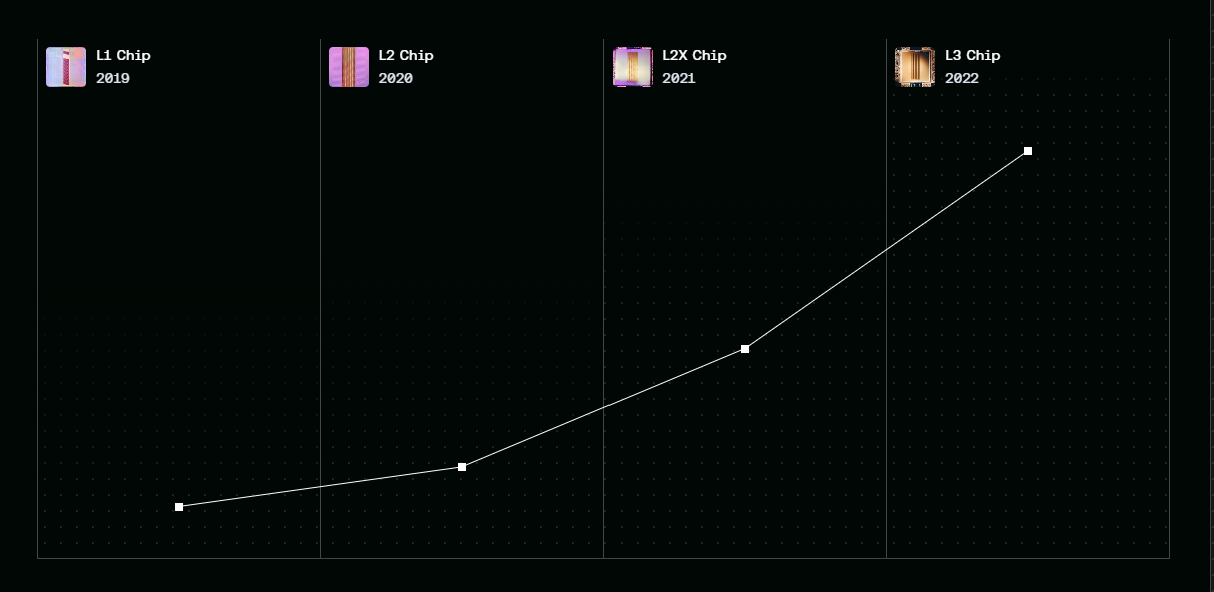

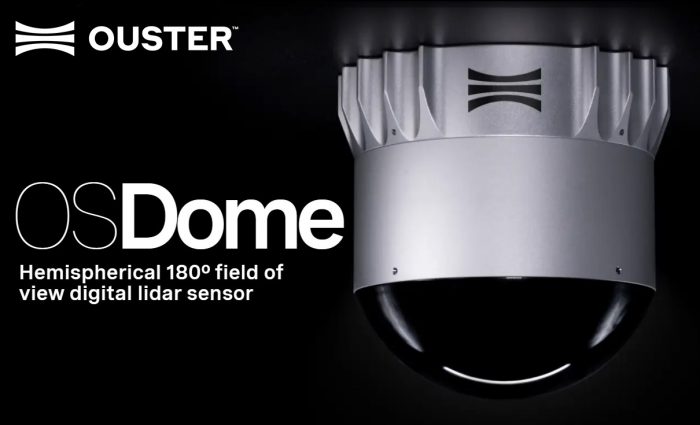

OSDome is the latest addition to the OS family. It offers a 180-degree view of the surroundings and provides full coverage with best-in-class resolution, thanks to Ouster's L3 chip.
|
ESSENTIAL FEATURES OSDome:
|
|
20m
Range 10%
|
45m
Maximum range
|
|
180º
FOV
|
128
Channels
|
|
5,2 million
Maximum points per second
|
10x
Photon sensitivity
|
|
-40°C
Minimum operating temperature
|
60°C
Maximum. Temp. Operating
|
|
IP68 e IP69K
Level protection
|
Unparalleled spatial perception

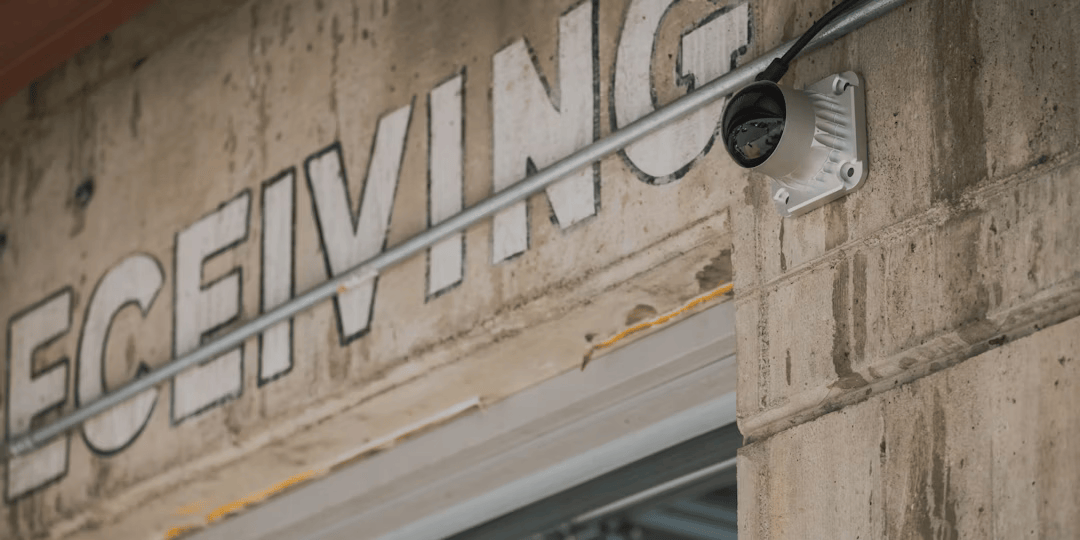

Ouster's OSDome sensor is an advanced LiDAR sensor that offers unparalleled spatial perception . With its state-of-the-art 'hemispheric view' , consisting of a 20 m range and 180° field of view , the OSDOome outperforms other leading sensors in its class. This compact yet powerful sensor is ideal for smart infrastructure, industrial, and indoor security applications.
Highest resolution
One of the most important features of the OSDome is its exceptional resolution, which provides a crystal-clear view of its surroundings even at the limits of its range. With the OSDome , you can rest easy knowing that potential dangers will be reported to you with unprecedented accuracy .
Compact and lightweight design
OSDome not only excels in performance, but also boasts a compact and lightweight design. It is designed to be smaller and lighter than its competitors, making installation easier and allowing you to focus on achieving your project goals.
Versatile applications
Discover the possibilities offered by OSDome's versatile specifications. Seamlessly integrate this innovative sensor into infrastructure and industrial systems, elevating efficiency and intelligence to unprecedented levels. From autonomous infrastructure to crowd analysis and the material handling revolution, OSDome offers unparalleled capabilities for a wide variety of applications.
Reliable operation: performance in any environment
OSDome offers an amazing operating temperature range, capable of operating at temperatures as low as -40 ºC and as high as 75 ºC , ensuring reliable operation even in extreme environmental conditions.
Discover the future of advanced sensing technology
Join the ranks of visionary companies embracing the future of advanced sensing technology. Choose OSDome and unlock the unlimited potential of comprehensive spatial sensing. Contact us to learn more about how OSDome can revolutionize your workflow.
Specifiche Tecniche Eng
OPTICAL PERFORMANCE
|
Range
(80% Lambertian reflectivity,
1024 @ 10 Hz mode)
|
45 m @ 100 klx sunlight, >90% detection probability
|
|
Range
(10% Lambertian reflectivity,
1024 @ 10 Hz mode)
|
20 m @ 100 klx sunlight, >90% detection probability
|
|
Minimum Range
|
0.0 m (0.3 m optional, and 0.5 m default)
|
|
Vertical Resolution
|
32, 64, or 128 channels
|
|
Horizontal Resolution
|
512, 1024, or 2048 (configurable)
|
|
Rotation Rate
|
10 or 20 Hz (configurable)
|
|
Field of View
|
Vertical: 180°
Horizontal: 360°
|
|
Angular Sampling Accuracy
|
Vertical: ±0.01° / Horizontal: ±0.01°
|
|
False Positive Rate
|
1/10,000
|
|
Range Resolution
|
0.1 cm
Note: For Low Data Rate Profile the Range Resolution = 0.8 cm
|
|
Vertical Angular Resolution
|
Up to 0.7º angular resolution
|
|
# of Returns
|
up to 2
|
|
Return Order
|
Strongest to Weakest, Farthest to Nearest, and Nearest to Farthest
|
